Apache Hbase 설치

centos7 기준입니다. 백업 마스터 2대를 둔 hbase cluster를 설치하도록 하겠습니다.

hadoop, zookeeper가 설치되어있음을 가정합니다.



실행 유저:hadoop

mast01: hbase master

mast02: hbase master

mast03: hbase master

work01:regionserver

work02:regionserver

work03:regionserver



https://developer-woong.tistory.com/36

hadoop 설치 (정리모음버전)

https://developer-woong.tistory.com/39

Zookeeper 설치



1. hbase 압축파일 다운로드 및 해제

action server: mast01

user: root

pwd: /opt/apps

cmd:

# mast01서버에서 설정 파일 수정 후 다른 서버들에게 배포 예정
wget https://archive.apache.org/dist/hbase/2.3.7/hbase-2.3.7-bin.tar.gz

tar xvfz hbase-2.3.7-bin.tar.gz

cd /opt/apps/hbase-2.3.7



2. hbase 설정파일 수정

action server: mast01

user: root

pwd: /opt/apps/hbase-2.3.7

cmd:

vi conf/hbase-env.sh

export JAVA_HOME=/opt/apps/jdk8
export HBASE_OPTS="$HBASE_OPTS -XX:+UseConcMarkSweepGC"
# 직접 설치한 주키퍼사용
export HBASE_MANAGES_ZK=false
# ssh포트 지정
export HBASE_SSH_OPTS="-p 22002"

# 로그 디렉토리 설정
export HBASE_LOG_DIR=/data01/logs/hbase

# PID 디렉토리 설정
export HBASE_PID_DIR=/opt/apps/hbase/pid

vi conf/hbase-site.xml
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
-->
<configuration>
    <property>
        <name>hbase.rootdir</name>
        <value>hdfs://NNHA:8020/hbase</value>
    </property>
    <property>
        <name>hbase.master</name>
        <value>mast01:6000</value>
    </property>
    <property>
        <name>hbase.zookeeper.quorum</name>
        <value>mast01,mast02,mast03</value>
    </property>
    <property>
        <name>zookeeper.znode.parent</name>
        <value>/hbase</value>
    </property>
    <property>
        <name>hbase.zookeeper.property.dataDir</name>
        <value>/data/zookeeper</value>
    </property>
    <property>
        <name>hbase.cluster.distributed</name>
        <value>true</value>
    </property>
    <property>
        <name>hbase.unsafe.stream.capability.enforce</name>
        <value>false</value>
    </property>
    <property>
        <name>dfs.datanode.max.xcievers</name>
        <value>4096</value>
    </property>
    <property>
        <name>hbase.master.port</name>
        <value>60000</value>
    </property>
    <property>
        <name>hbase.master.info.port</name>
        <value>60010</value>
    </property>
    <property>
        <name>hbase.regionserver.port</name>
        <value>60020</value>
    </property>
    <property>
        <name>hbase.regionserver.info.port</name>
        <value>60030</value>
    </property>
    <property>
        <name>hbase.rest.port</name>
        <value>33333</value>
    </property>
</configuration>


vi conf/regionservers
work01
work02
work03

vi conf/backup-masters
mast02
mast03

cd ..



3. hbase 재 압축 및 다른 서버들에게 배포

action server: mast01

user: root

pwd: /opt/apps

cmd:

tar cvfz hbase.tar.gz ./hbase-2.3.7

scp -P 22002 ./hbase.tar.gz root@mast02:/opt/apps
scp -P 22002 ./hbase.tar.gz root@mast03:/opt/apps
scp -P 22002 ./hbase.tar.gz root@work01:/opt/apps
scp -P 22002 ./hbase.tar.gz root@work02:/opt/apps
scp -P 22002 ./hbase.tar.gz root@work03:/opt/apps



4. hbase 재 배포 파일 압축 해제

action server: mast02, mast03, work01, work02, work03

user: root

pwd: -

cmd:

cd /opt/apps
tar xvfz hbase.tar.gz



5. hbase 폴더 권한 부여 및 환경변수 설정

action server: all

user: /opt/apps

pwd: -

cmd:

 # hbase-env.sh에서 설정한 pid 디렉토리 생성
 mkdir /opt/apps/hbase-2.3.7/pid

 # hbase-env.sh에서 설정한 로그 디렉토리 생성
 mkdir -p /data/hbase/log

chown -R hadoop:hadoop /opt/apps/hbase-2.3.7
chown -R hadoop:hadoop /data/hbase

vi /etc/profile.d/hbase.sh

export HBASE_HOME=/opt/apps/hbase-2.3.7
export PATH=$PATH:$HBASE_HOME/bin

source /etc/profile.d/hbase.sh

su - hadoop
cd /opt/apps/hbase-2.3.7



6. hbase 기동 및 확인

action server: mast01

user: hadoop

pwd: /opt/apps/hbase-2.3.7

cmd:

# mast01서버에서 실행

./bin/start-hbase.sh

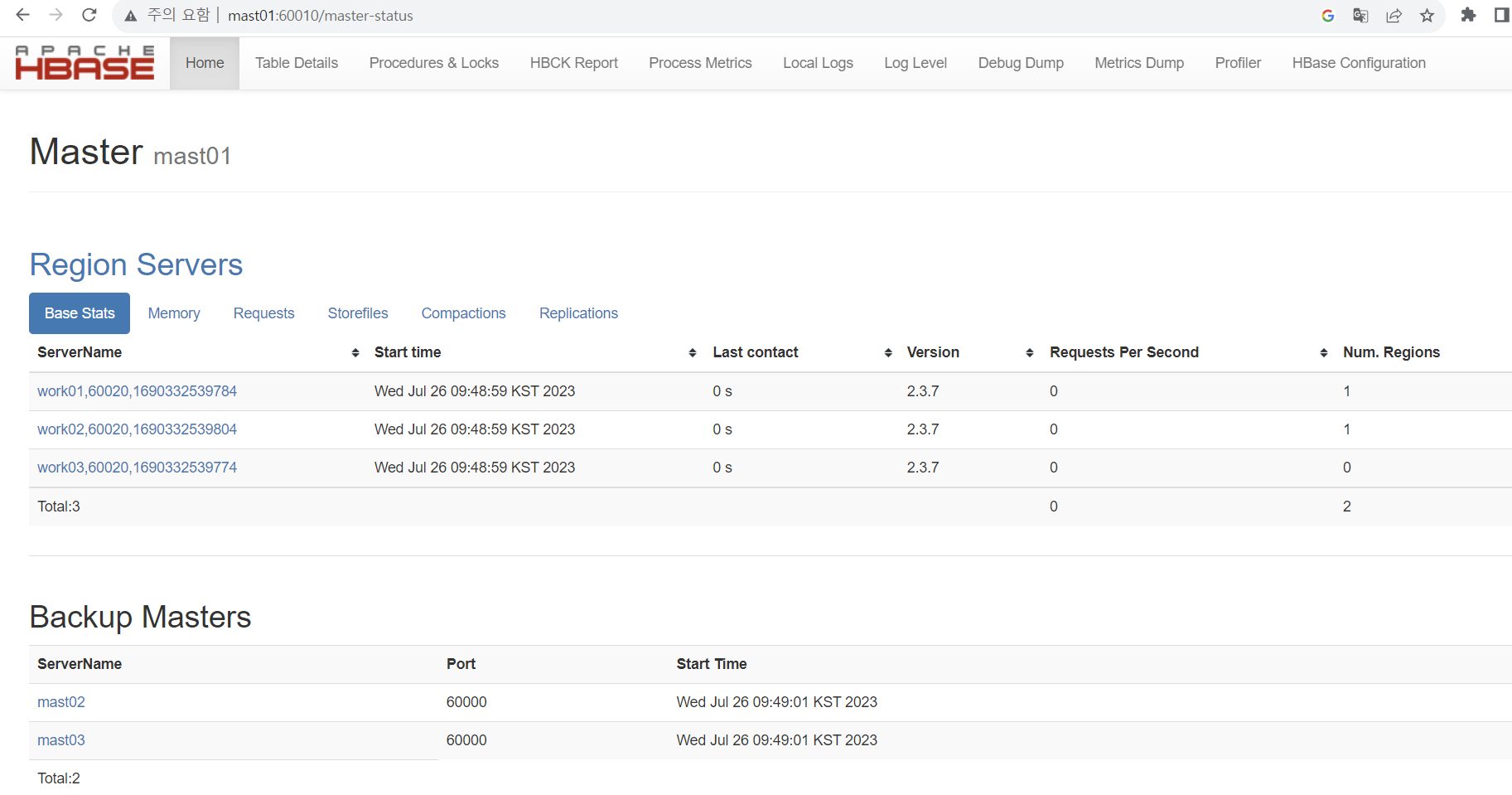

mast01:60010 웹 UI확인
