Yarn timelineserver 설정

yarn timelineserver를 설정해보겠습니다.



hadoop이 설치되어있음을 가정합니다.

https://developer-woong.tistory.com/36

hadoop 설치 (정리모음버전)



1. yarn-site.xml 수정

action server: mast02 (yarn 동작서버)

user: hadoop

pwd: /opt/apps/hadoop-3.2.1/etc/hadoop

cmd:

# 해당 컨피그들 추가
vi yarn-site.xml

       <property>
                <name>yarn.timeline-service.enabled</name>
                <value>true</value>
        </property>
        <property>
                <name>yarn.timeline-service.hostname</name>
                <value>mast02</value>
        </property>
        <property>
                <name>yarn.timeline-service.http-cross-origin.enabled</name>
                <value>true</value>
        </property>
        <property>
                <name> yarn.resourcemanager.system-metrics-publisher.enabled</name>
                <value>true</value>
        </property>
        <property>
                <name>yarn.timeline-service.generic-application-history.enabled</name>
                <value>true</value>
        </property>
        <property>
                <name>yarn.timeline-service.address</name>
                <value>mast02:10200</value>
        </property>
        <property>
                <name>yarn.timeline-service.webapp.address</name>
                <value>mast02:8188</value>
        </property>
        <property>
                <name>yarn.timeline-service.webapp.https.address</name>
                <value>mast02:8190</value>
        </property>

 cd /opt/apps/hadoop-3.2.1



2. 설정파일 재 배포 및 yarn restart

action server: mast02 (yarn 동작서버)

user: hadoop

pwd: /opt/apps/hadoop-3.2.1/etc/hadoop

cmd:

# hadoop 클러스터 서버들에게 배포
scp -P 22002 ./capacity-scheduler.xml hadoop@mast01:/opt/apps/hadoop-3.2.1/etc/hadoop
scp -P 22002 ./capacity-scheduler.xml hadoop@mast03:/opt/apps/hadoop-3.2.1/etc/hadoop
scp -P 22002 ./capacity-scheduler.xml hadoop@work01:/opt/apps/hadoop-3.2.1/etc/hadoop
scp -P 22002 ./capacity-scheduler.xml hadoop@work02:/opt/apps/hadoop-3.2.1/etc/hadoop
scp -P 22002 ./capacity-scheduler.xml hadoop@work03:/opt/apps/hadoop-3.2.1/etc/hadoop

# mast02서버 실행(yarn이 동작하는 서버)
sbin/yarn-daemon.sh start timelineserver

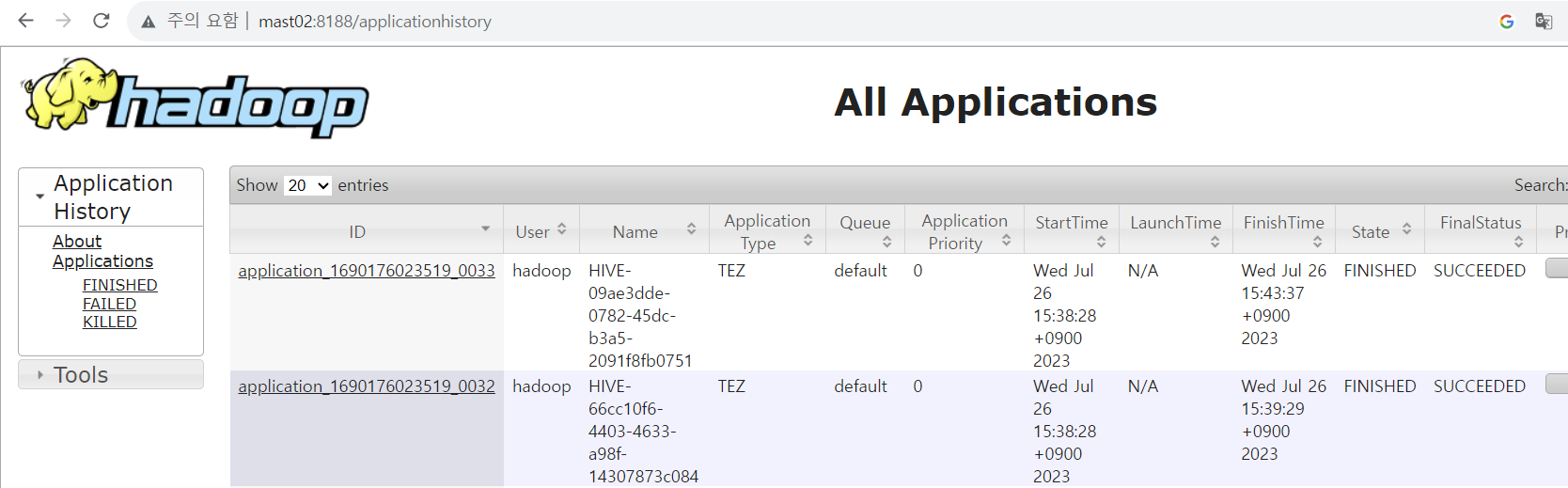

결과확인

mast02:8188
